In the bustling landscape of industrial applications, SAE fittings hold a pivotal role. Whether the 45-degree SAE style or specialised types for the air conditioning industry, these critical components ensure sturdy, leak-resistant connections in various pressure conditions. However, understanding their selection and application can be complex.
In this blog post, we navigate the intricate world of SAE fittings. We’ll unravel everything from the nuances of thread sizes and Tube O.D. to the specifics of different fittings like SAE Brass Flare Connectors and flared brass fittings. Whether you’re a small business owner, part of a large organisation, or a DIY enthusiast, join us as we dig into the fascinating world of SAE fittings, empowering you with knowledge for your next project.
What are SAE Fittings?
SAE fittings are specialised connectors designed for various industrial applications. These fittings, named after the Society of Automotive Engineers (SAE), comply with this body’s common flare fitting standards, ensuring optimal performance, durability, and safety.
At the heart of these standards are specific measurements and design criteria. Key among these is thread form, tube sizes, seat angle, and pressure ratings. These parameters ensure a robust and leak-resistant connection in fluid and gas transfer systems, a critical factor in the overall functionality of these systems.
The SAE fittings include various mechanical connections, from the common 45-degree SAE style to flared brass fittings and SAE Brass Flare Connector. The fittings typically involve a male and female connection, with the male fitting having external threads (Thread O.D.) and the female fitting featuring internal threads (Female Thread I.D.). The specific design of these fittings facilitates the secure connection of tubes or hoses, often involving a flared tubing end to match the tapered seat in the female fitting.
SAE fittings are widely used across various industries, including automotive, hydraulic systems, and even the air conditioning industry, where precise, high-pressure resistant connections are crucial. Each fitting style serves a unique purpose, with the correct selection depending on factors like the material of the tubes (aluminium tubing or copper tubing, for example), the pressure requirements, and the specific industrial application.
SAE fittings are vital components adhering to defined standards to ensure optimal performance and safety in various industrial applications. Their design, size, and thread characteristics all play a role in their functionality, providing reliable and durable connections for fluid and gas transfer systems.
Types of SAE Fittings
SAE Brass Flare Fittings come in various types, each serving specific purposes across different industries. Among these are JIC (Joint Industry Council) fittings, ORFS (O-Ring Face Seal), and 45-degree SAE flare fittings, among others.
JIC Fittings
JIC, or 37-1/2° flare fittings, are widely used in hydraulic applications. They form a strong mechanical connection through a metal-to-metal seal, aided by a 37-1/2° flare connection at the tube end that mates with a similar flare on the female halves of the fitting. The result is a reliable, leak-resistant connection suitable for high-pressure conditions.
ORFS Fittings
On the other hand, ORFS fittings are favoured for their excellent leak resistance, courtesy of an O-ring housed in a groove in the flat face of the fitting. This feature allows ORFS fittings to handle even higher pressures, making them an excellent choice for hydraulic systems.
45-Degree SAE Flare Fittings
The SAE 45-degree flare fittings are commonly employed in various pressure applications, including automotive and refrigeration systems. The flare on the tube mates with a conical seat in the female fitting, creating a dependable, pressure-resistant seal. Their compatibility with flared tubing, and the ability to handle significant pressure, make them a staple in the air conditioning industry and beyond.
SAE Threads
SAE threads are commonly used in refrigeration, automotive, and low-pressure applications. Here’s a summary of the information and recreated tables from the link:
SAE Threads
SAE threads are used in various fittings, including:
- SAE O RING FLANGE – CODE 61 & CODE 62 SAE J518, ISO 6162
- RYCO O RING FLANGE CODE 62C
- SAE Male Connector
- SAE Female Connector
The SAE male connector has a flange with an O Ring groove on the face, while the SAE female can be a flange block or port with a smooth face to accept the O Ring and four threaded bolt holes in a rectangular pattern. The SAE connection is held together using a split or solid flange clamp, fitted over the male flange head and drawn up to the female port using the four bolts, compressing the O Ring, forming a seal between the male flange and the flat female port face.
SAE 45° Flare – SAE J512 Threads Dimensions
| MALE THREAD OD & PITCH | DASH SIZE | MALE THREAD OD (mm) | FEMALE THREAD ID (mm) | TUBE SIZE (inch) |
| 5/16 – 24 | -05 | 7.9 | 6.8 | 1/8 |
| 3/8 – 24 | -06 | 9.5 | 8.4 | 3/16 |
| 7/16 – 20 | -07 | 11.1 | 9.9 | 1/4 |
| 1/2 – 20 | -08 | 12.7 | 11.4 | 5/16 |
| 5/8 – 18 | -10 | 15.9 | 14.2 | 3/8 |
| 3/4 – 16 | -12 | 19.1 | 17.5 | 1/2 |
| 7/8 – 14 | -14 | 22.2 | 20.6 | 5/8 |
| 1.1/16 – 14 | -17 | 27.0 | 24.9 | 3/4 |
SAE 45º INVERTED FLARE – SAE J512 Threads Dimensions
| MALE THREAD OD & PITCH | DASH SIZE | MALE THREAD OD (mm) | FEMALE THREAD ID (mm) | TUBE SIZE (inch) |
| 7/16 – 24 | -07 | 11.1 | 9.9 | 1/4 |
| 1/2 – 20 | -08 | 12.7 | 11.4 | 5/16 |
| 5/8 – 18 | -10 | 15.9 | 14.2 | 3/8 |
| 11/16 – 18 | -11 | 17.5 | 16.0 | 7/16 |
SAE PILOT O RING SEALS Pilot Male Swivel Threads Dimensions
| MALE THREAD OD & PITCH | DASH SIZE | MALE THREAD OD (mm) | FEMALE THREAD ID (mm) | TUBE SIZE (inch) |
| 5/8 – 18 | -10 | 15.9 | 14.2 | -6 |
| 3/4 – 18 | -12 | 19.0 | 17.8 | -8 |
| 7/8 – 18 | -14 | 22.2 | 20.6 | -10 |
Pilot Female Swivel Threads Dimensions
| MALE THREAD OD & PITCH | DASH SIZE | MALE THREAD OD (mm) | FEMALE THREAD ID (mm) | TUBE SIZE (inch) |
| 5/8 – 18 | -10 | 15.9 | 14.2 | -6 |
| 3/4 – 16 | -12 | 19.0 | 17.5 | -8 |
| 3/4 – 16 | -12 | 19.0 | 17.5 | -8 |
Please note that the dash size, male thread OD, female thread ID, and tube size are all important parameters for these fittings.

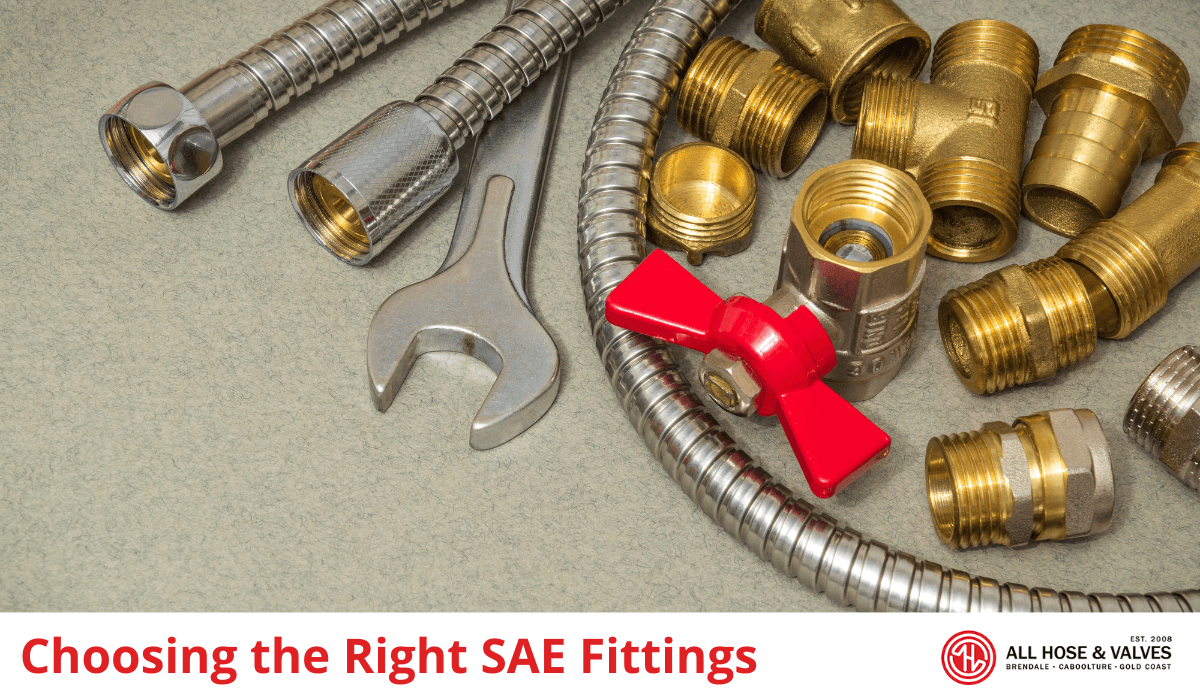

Choosing the Right SAE Fittings
When choosing SAE fittings, several key factors must be considered to ensure optimal performance and safety. Understanding these considerations can help make an informed decision whether you are a tradesman, a large organisation, or a DIY enthusiast.
Type of Application
Different fittings serve different purposes. The 45-degree SAE style is often used in automotive and refrigeration systems due to its compatibility with flared tubing. JIC fittings are commonly found in high-pressure hydraulic systems. Understanding your application is crucial in determining the right type of fitting.
Material Compatibility
The material should be compatible with the tubing to ensure a secure connection. Whether you use aluminium or copper tubing, the fitting should match accordingly. Also, certain materials may be more corrosion-resistant in harsh environments.
Pressure Ratings
Fittings are rated for specific pressure ranges, and choosing a fitting with the appropriate pressure rating is vital for system safety and efficiency. Thread characteristics, like Thread O.D., Female Thread I.D., and Metric Thread Size, also play a role in determining the pressure a fitting can withstand.
Size
The fitting size should correspond to the Tube O.D. to ensure a proper fit, including the tubing size with the nut and the tube itself.
Thread Type
Understanding thread types, from parallel threads to 45º flare threads, can also be crucial. Different thread types offer varying levels of sealing and connection strength. Furthermore, understanding the spacing in threads and thread distances can guide the right choice.
Installing and Maintaining SAE Fittings
Installing and maintaining SAE fittings correctly is crucial for their efficient operation and longevity. However, it’s important to note that this information serves as a general guide and that professional installation is always recommended for optimal safety and durability.
Installation
Before installing any SAE fittings, ensure the thread sizes of the male and female parts match. This includes the Thread O.D., Female Thread I.D., and Metric Thread Size. Also, verify that the tube sizes align with the fitting.
When working with flared fittings, such as the 45-degree SAE style or flared brass fittings, make sure the flare on the tubing aligns correctly with the tapered seat in the female fitting. Tube flaring should be done per the specific cold working procedure, ensuring an exact fThe threads should be carefully aligned forThe threads should be carefully aligned for fittings with parallel threads or 45º flare to avoid cross-threading. Also, check the thread spacing and thread distances to ensure a proper fit.
Tightening is an essential step. Over-tightening can damage the fitting and the thread characteristics, while under-tightening may lead to leaks. It is best to follow the manufacturer’s recommendations on tightening procedures.
Maintenance
Regular inspection of SAE fittings is key to the early detection of any issues, such as leaks or wear. If you notice any changes in pressure, this may signal a problem with the fitting.
Ensure the fittings are kept clean, particularly in environments where dirt or debris could accumulate and affect the seal or connection.
When it comes to material-specific fittings like SAE Brass Flare Connector, it is important to consider specific maintenance requirements. For instance, brass fittings may require additional care to prevent corrosion.
It’s also crucial to consider the fitting’s pressure ratings during maintenance. Continuous operation beyond the fitting’s pressure rating can lead to premature wear and potential failure.
Common Challenges with SAE Fittings and How to Overcome Them
Fitting leaks are a common problem in many industrial applications, potentially leading to inefficiencies and safety issues. Often, these issues stem from poor-quality fittings, incorrect installation, or inadequate maintenance. Many of these issues can be prevented by choosing quality SAE fittings from trusted suppliers like All Hose and Valves.
Preventing Leaks
The first step to avoiding leaks is to invest in high-quality fittings. At All Hose and Valves, our SAE fittings adhere to strict standards set by the SAE, ensuring top-notch quality. Our fittings range from the common 45-degree SAE style to flared brass fittings and SAE Brass Flare Connectors, all designed for secure, leak-resistant connections.
Proper installation is another critical aspect. Ensuring the correct match between Thread O.D., Female Thread I.D., Metric Thread Size, and the Tube O.D. is crucial. Also, make sure the fitting’s seat angle corresponds correctly with the flared tubing. Remember, the fitting should be tightened just right – over-tightening can damage the fitting and under-tightening may cause leaks.
Troubleshooting Leaks
If leaks do occur, it’s essential to identify the source promptly. Is it stemming from the connection between the male and female halves of the fitting, or is it a tube-end leak? Once the source is identified, the fitting may need to be re-tightened or replaced entirely.
Maintenance Tips
Regular inspection of your fittings can help detect potential problems early. Look for signs of wear and tear, corrosion, or changes in pressure. In environments where dirt or debris could accumulate, ensure the fittings are kept clean to maintain a good seal.
Material-specific maintenance might also be necessary. For instance, fittings like SAE Brass Flare Connectors might require special care to prevent corrosion.
Why Choose All Hose and Valves for Your SAE Fittings
Choosing All Hose and Valves for your SAE fittings needs brings a host of benefits. We pride ourselves on providing a diverse range of quality products, ensuring exceptional customer service throughout your buying experience.
Wide Range of Products
At All Hose and Valves, we boast a comprehensive selection of SAE fittings to cater to various industrial applications. Whether you’re seeking the common 45-degree SAE style, flared brass fittings, or SAE Brass Flare Connectors, we’ve got you covered. Our offerings cater to all size tubing and thread forms, ensuring you find the perfect fit for your project.
Knowledgeable Staff
Our team comprises seasoned industry experts ready to assist you in your purchase. With a deep understanding of SAE fittings, we guide crucial aspects, from thread sizes (Thread O.D., Female Thread I.D., and Metric Thread Size) to pressure ratings. Whether you are a small business owner or a large organisation, we ensure you get the right fittings for your specific needs.
Commitment to Quality
We are committed to delivering high-quality products that adhere to the rigorous standards set by the SAE Our fittings offer reliable, leak-resistant connections, withstanding pressure and ensuring safety across various industrial applications.
Convenience
With three store locations and an extensive online catalogue, shopping with us is easy and convenient. We understand that your time is valuable, which is why we’ve streamlined our processes to provide you with a hassle-free shopping experience.
Invest in SAE fittings from All Hose and Valves today and experience the difference in quality and service. For assistance in choosing the most suitable SAE fittings, don’t hesitate to visit our three Queensland stores or contact us through our website. Our knowledgeable team is ready to help you make the right choice for your industrial projects.
At All Hose and Valves, we understand these challenges. Our expert team is always ready to offer guidance, ensuring that you have the right fittings for your needs and the knowledge to keep them in optimal condition. Trust us with your SAE fitting needs for a hassle-free, efficient, and safe project experience.
